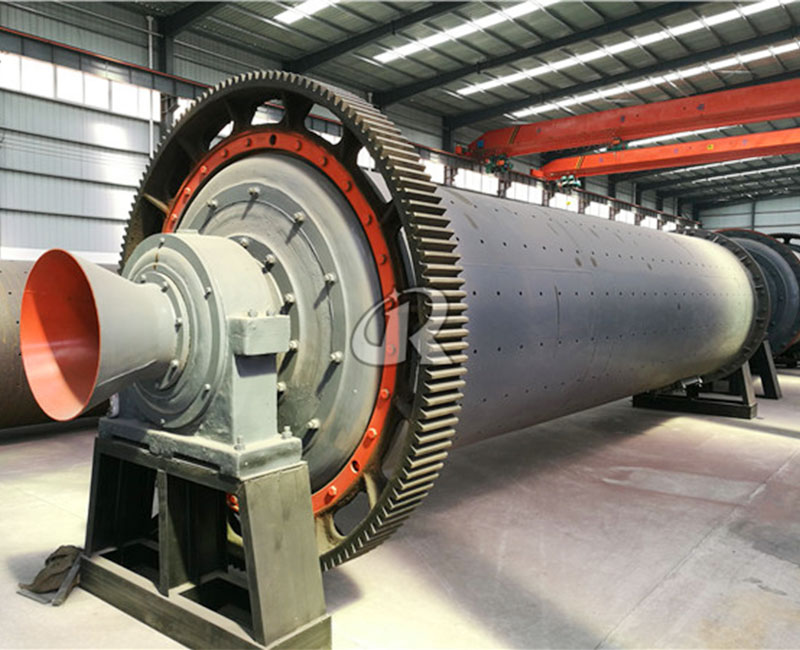

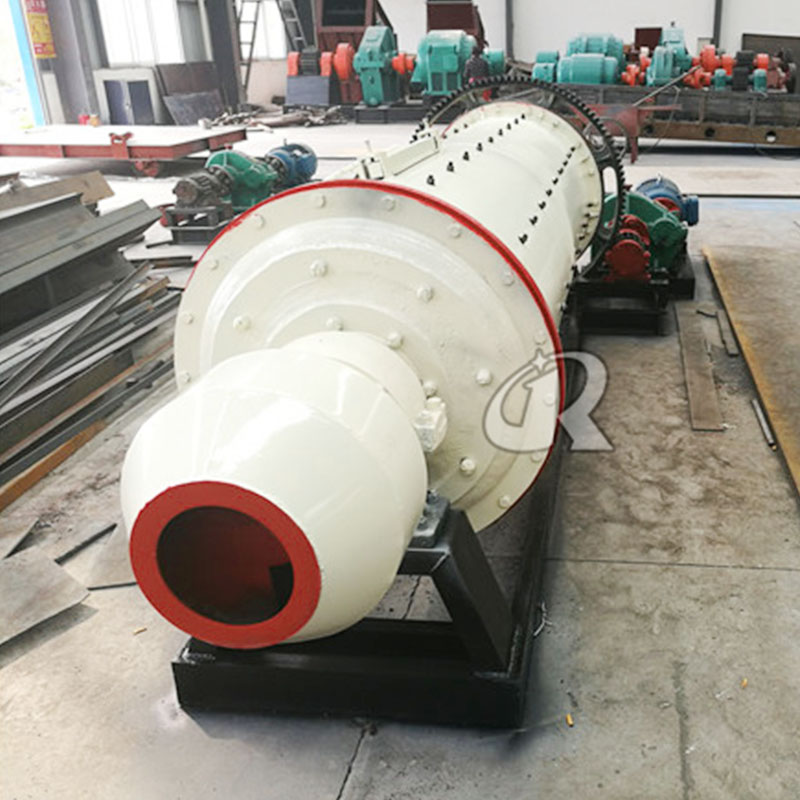

Quartz Ball Mill – Precision Grinding for High-Purity Silica, Without the Iron

Quartz is hard. It eats standard steel liners in months. And the iron it picks up ruins your powder’s value before it even leaves the mill.

If you’re producing quartz powder for glass, ceramics, photovoltaic silicon, engineered stone, or high-end fillers, you already know the problem. Ordinary ball mills contaminate your product with iron, driving up purification costs and locking you out of premium markets. Worse, the abrasive nature of quartz (Mohs 7) causes rapid wear, frequent downtime, and unstable particle size.

Our quartz ball mill is designed to reverse that equation. It’s not a cement mill adapted for silica — it’s a specialized grinding system built around the unique demands of quartz. With non-metallic liners, precision classification, and the choice of dry or wet processing, it delivers:

• Iron-free grinding using high-alumina ceramic, flint, or natural quartz liners and media — ideal for high-purity applications

• Accurate fineness control from 80 mesh coarse sand down to 5000 mesh ultra-fine powder (2–3 µm)

• Long service intervals even under continuous, high-abrasion conditions

• Consistent product quality that meets the strictest glass, ceramic, and electronic-grade specifications

If your current grinding line is costing you purity, productivity, or peace of mind, it’s time to switch to a quartz ball mill that’s engineered for the job.

Why This Quartz Ball Mill Dominates High-Purity Silica Grinding

1. Zero Iron Contamination – Choose Your Non-Metallic Lining

We give you the lining that matches your purity requirement:

• Alumina ceramic (92%–99% Al₂O₃) — the industry standard for ultra-low iron quartz powder

• Natural flint or quartz stone — for traditional glass-grade silica, offering excellent wear life at lower cost

• Rubber or polyurethane — for coarser applications where some flexibility is needed
  Grinding media are matched accordingly: high-alumina balls, flint pebbles, or zirconia beads for ultra-fine grades.

2. Closed-Circuit Classification for Perfect Particle Size Every Time

• Paired with an air classifier (dry) or hydrocyclone/vibrating screen (wet), the quartz ball mill operates in closed circuit. Only particles within your target range exit the system. This eliminates over-grinding, saves energy, and guarantees the narrow size distribution that high-performance quartz applications demand.

3. Engineered for High Hardness, High Abrasion

• The mill shell is thicker at critical wear points. The bearing system (slide-shoe or trunnion) is sized for the high density of quartz media. The drive train is specified with ample service factor. This isn’t a general-purpose mill; it’s a quartz ball mill built to sustain Mohs 7 grinding day in, day out.

4. Dry or Wet Grinding, One Flexible Platform

• Dry grinding — ideal for quartz powder used in glass batch, engineered stone, and electronic encapsulants. The system integrates a hot air dryer if feed moisture requires it.

• Wet grinding — preferred for silica sand processing, ceramic body preparation, and ultra-fine slurries. Wet grinding typically achieves finer particle sizes with lower energy.

We configure the quartz ball mill to match your downstream process, not the other way around.

5. Long Lining Life, Fast Replacement

Segmented ceramic or stone liners are installed using a proven mortar or boltless system. When replacement is eventually needed, your maintenance crew swaps individual segments in hours — no full reline shutdown lasting days. High-purity quartz grinding stays profitable because the mill stays online.

Who Uses This Quartz Ball Mill?

• Glass manufacturers needing consistent, iron-free silica sand or powder for flat glass, container glass, and specialty glass.

• Ceramic and sanitary ware plants grinding quartz as a key body or glaze ingredient.

• Engineered (quartz) stone producers requiring precisely graded quartz filler and aggregates.

• Solar/photovoltaic silicon feedstock suppliers upgrading quartz to high-purity powder for crucibles and silicon metal.

• Electronics encapsulant and filler companies using ultra-fine spherical or angular silica powder.

• Abrasive and refractory producers processing quartz into graded sand or flour.

Every industry that needs quartz ground finer, purer, and more consistently relies on our quartz ball mill technology.

Proven Results in the Toughest Quartz Applications

“We cut iron content to 0.008% and won a solar crucible contract.”

“Before installing [YourCompany]’s quartz ball mill with alumina ceramic lining, we struggled to meet the purity spec for high-end quartz crucible feedstock. Now our Fe₂O₃ is consistently below 0.01%, and we signed a long-term supply deal with a major solar wafer producer.”
— Quality Director, High-Purity Quartz Processing Plant, China

“Our engineered stone surface quality improved dramatically.”

“We replaced an old iron-lined mill with a [YourCompany] quartz ball mill using flint lining. The eliminated iron contamination means no more grey or yellow streaks in our white quartz surfaces. Our premium slab sales are up 40%.”
— Production Manager, Engineered Stone Plant, Italy
